    Product Description

    Easy to move. Easy to use. Ideal with the CSC SYS 50 cordless table saw.

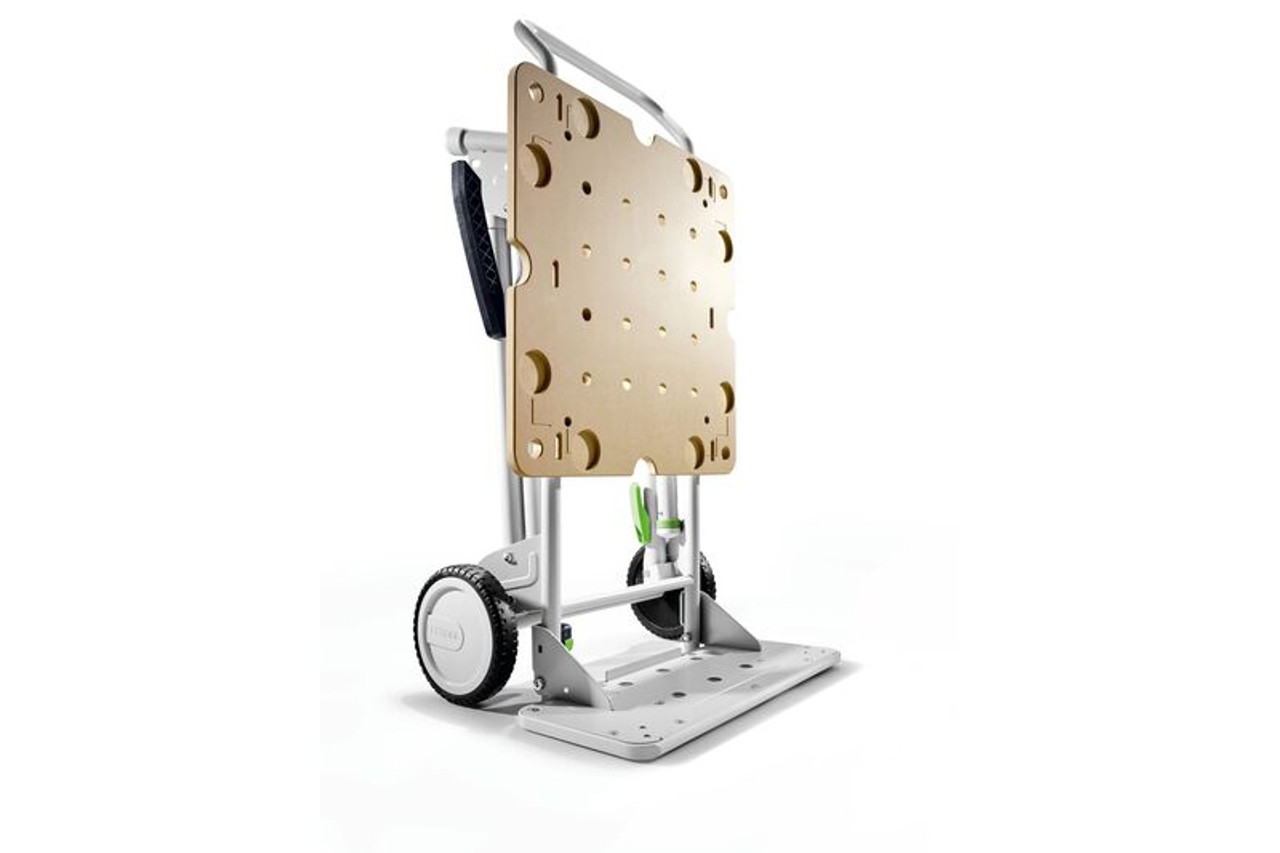

    The UG-CSC-SYS underframe cart is the ideal 3-in-1 solution when doing jobs with the CSC SYS 50. It acts as a hand cart for moving the saw from the vehicle to the point of use – allowing you to easily roll an entire tower of Systainers of up to 176 lbs (80 kg) to the jobsite. The foldaway legs can be easily deployed, giving you a worktable of 23" x 23" (58 x 58 cm) in size; a practical alternative to folding sawhorses. Materials are securely clamped on the surface via the indexable clamping points on top. The cart demonstrates its full ability in combination with the CSC SYS 50 cordless table saw. The saw indexes to be securely positioned in the holes of the work top – all while putting you at an ergonomicwork height. The legs simply remain folded in when using the CSC SYS 50 cordless table saw on the ground. The bottom plate that just served as a wheeled hand truck for the Systainers is now set up as an ideal work support for long materials for all rip cuts, cross cuts and angled cuts.

    • Versatile: Handtruck, worktable, and underframe support for the CSC SYS 50 cordless table saw - all in one
    • Tough: Transport a Systainer tower up to 176 lbs (80 kg). The Systainers engage securely on the base plate. Secure with a lashing strap
    • Saves space: Folded together, the underframe takes up barely any space in a vehicle
    • Practical: The foldaway legs can be deployed instantly. Unevenness in the floor is compensated for by an adjustable foot on one of the foldaway legs
    • Stable support: The typical Festool hole pattern of the worktop allows secure clamping of materials with screw clamp and lever clamps
    • A perfect fit: The ideal combination with the CSC SYS 50 cordless table saw. Creates an ergonomic working height, while also providing stable support for long materials. The legs remain folded in when working close to the ground (working height 9-21/32" (24.5 cm)
    • puts the CSC SYS 50 cordless table saw at a working height of 90 cm (with legs folded out)

    Product highlights

    Made to move. Made to save space.

    In its role as a hand cart, it effortlessly transports not just the CSC SYS 50 cordless table saw but also all your Systainers to the point of use. This saves time and helps you work in a professional manner. Folded together, it takes up barely any space in the vehicle – so you always have this clever assistant on board!

    A workbench on the go.

    A work space is available to you when you need it; quickly set up thanks to convenient foldaway legs. materials can be securely clamped onto it using a perforated top and clamps. The UG-CSC-SYS underframe is an ideal alternative to sawhorses on the site.

    The perfect pair: Underframe and the CSC SYS 50 cordless table saw.

    The UG-CSC-SYS underframe is ideally suited for use with the CSC SYS 50 cordless table saw. You position the CSC SYS 50 securely on the worktop via suitable holes – and raise it to an ergonomic working height. The bottom plate of the underframe offers a material support surface for rip and cross-cuts (especially for long materials).



    Main applications

    • Ideal underframe suport cart for CSC SYS table saw
    • Suitable for transporting stacked Systainers in its role as a hand cart, the bottom plate can hold up to 176 lbs (80 kg)
    • Suitable as a mobile worktable with a load of 220 lbs (100 kg)

    Specifications

    Weight: 40.35 lbs (18.1 kg)
    Dimensions (L x W x H): 42 x 22-27/32 x 9-21/32" (1 067 x 580 x 245 mm)
    Table dimensions: 22-27/32 x 22-27/32" (580 x 580 mm)
    Tabletop height: High working position: 26-1/4" (677 mm)
    Tabletop height: Low working position: 9-21/32" (245 mm)
    Load capacity as worktable/hand truck: 220 / 176 lbs (100 / 80 kg)

    Download Operating Instructions
